Miniature Plastic Bearings

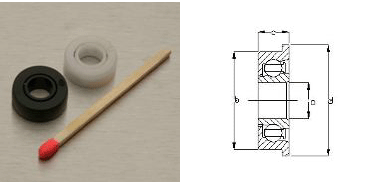

BNL (UK) Ltd offers a range of miniature plastic bearings designed to directly replace steel bearings in many demanding long-life light-load applications.
Produced to meet the high performance needs of business machines, office equipment and other light duty mechanical applications, these bearings are supplied to leading OEM manufacturers worldwide.
The majority of BNL mini bearings are manufactured from acetal (POM) fitted with either stainless steel or carbon steel balls. A semi-crystalline material, acetal delivers excellent long-term wear performance and is dimensionally stable when subjected to load, temperature and most fluids including detergents, fuel/oils/greases, brake fluid, alkalis (pH9), alcohols, aliphatic/aromatic hydrocarbons, and acetone. Resistance to bleach and ketones is also possible, dependent on concentration.
In addition, these bearings are lightweight, require no external lubrication, operate in temperatures from -40°c to 100°c and offer lower friction at higher speeds. With fully moulded inner and outer races, BNL moulded bearings offer a greater life expectancy than similar bearings with machined races. Flanged options offer a fully integrated feature for accurate axial positioning.
Technical Specification
| ISO Ref. | BNL Ref. | Bore (a) (mm) | O / D (b) (mm) | Width (c) (mm) | Flange (d) (mm) | Load Rating Load (kg)** |
|
S |
D |
||||||
| Moulded Miniature Bearings | |||||||
| - | AC6M12 |
6 | 12 | 4 | N/A | 1.25 | 3.00 |
| 686 | AC686ZZ | 6 |
13 |
5 |
N/A | 1.25 | 3.00 |
| 686F | AC686FZZ | 6 | 13 |
5 |
14.5 | 1.25 | 3.00 |
| 686F | AC686FZZK | 6 | 13 |
5 |
14.5* |
1.25 | 3.00 |
| 688 | AC688ZZ | 8 | 16 |
5 |
N/A | 2.50 | 6.00 |
| 688F | AC688ZZF | 8 | 16 |
5 |
18 | 2.50 | 6.00 |
626 |
AC626Z | 6 | 19 | 6 | N/A | 5.00 | 12.00 |
| 636 | AC636ZZ | 6 | 22 | 7 | N/A | 7.50 | 19.00 |
| 608 | AC608Z | 8 | 22 |
7 |
N/A | 7.50 | 19.00 |
| 608F | AC608ZF | 8 | 22 |
7 |
25 |
7.50 | 19.00 |
S = Static
D = Dynamic
*Anti-rotation
Inner Race, Outer Race & Cage: |
POM (acetal) |
Balls: |
Carbon Steel or Stainless Steel as standard |
Grease: |
Non-lubricated or lithium / PTFE soap |
Run-out (max at shaft): |
0.10mm |
Temperature Range: |
-60°c to +120°c (shipping); -40 °c to +100 °c (operating) |
Speed Limit: |
>5,000rpm** |
Life (max at <1kg): |
500,000,000 revs** |
Frictional Torque (un-lubricated): |
<3 μNm** |
**Guide only - actual figures depend on application and can be supplied on receipt of environmental conditions
Other sizes, materials and ball types are available on request.
Bearing Life

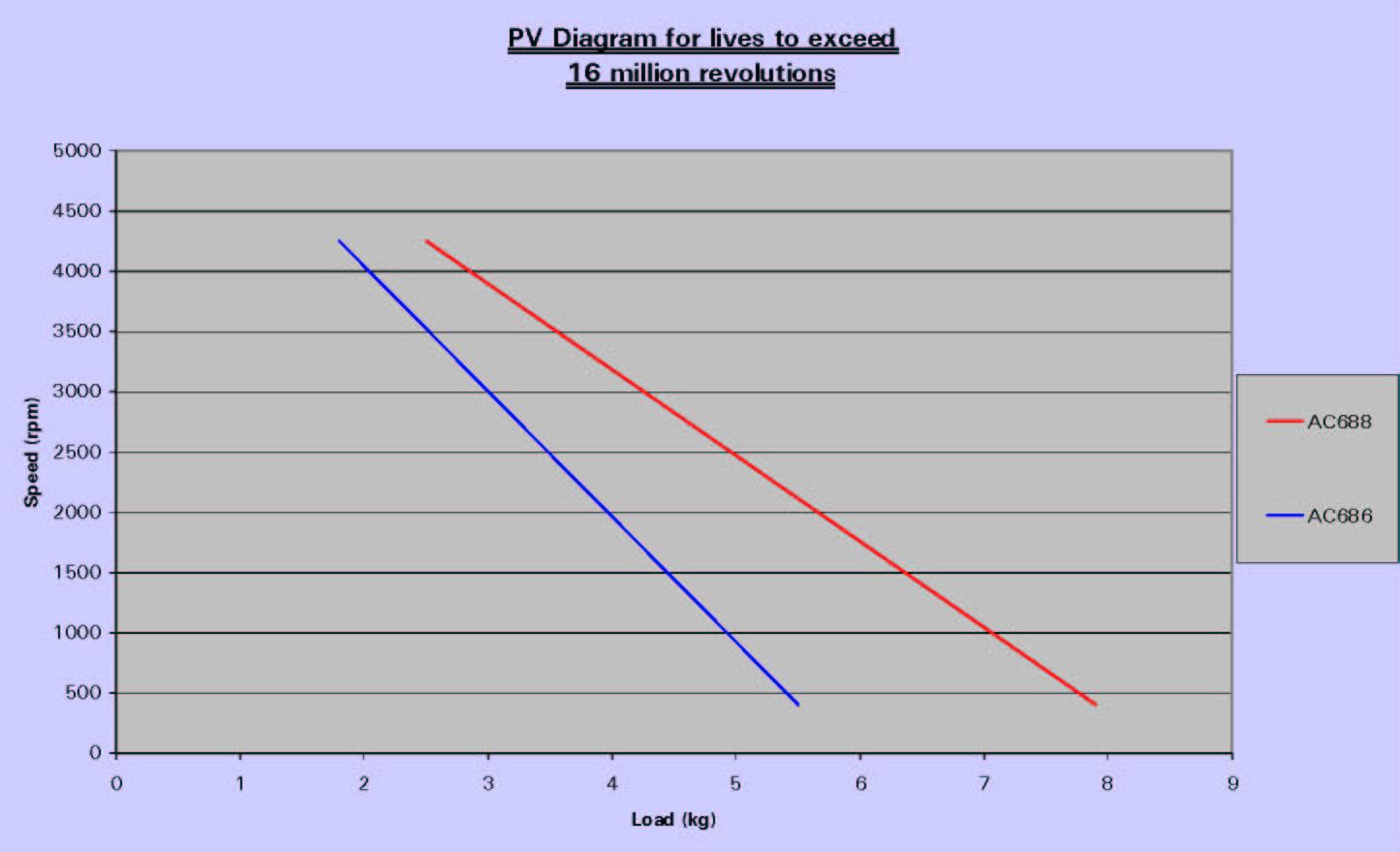

The following PV curves are to be used only as a guide for bearing selection - they are based on laboratory condition testing at ambient temperature (20° C).
Real user applications may have specific environmental conditions that will affect bearing performance. BNL’s design engineers can further advise on bearing design and selection for specific conditions - elevated temperatures, lubrication, fluctuating loads or speeds, etc.
